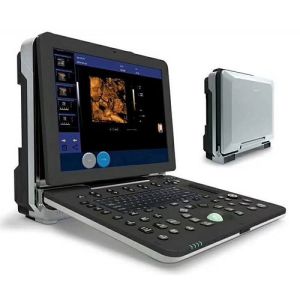

| 1 | A summary of the main specifications and system of portable color Doppler ultrasound |
| 1.1 | Portable all digital color Doppler ultrasonic host |
| 1.2 | Ultrasonic host operating system: Windows 8 operating system |
| 1.3 | Spectrum pulse Doppler |
| 1.4 | Direction energy Doppler |
| 1.5 | Real time three synchronization |
| 1.6 | Space composite imaging: the requirement is 3 level, visual adjustable. |
| 1.7 | Organized harmonic imaging technology |
| 1.8 | 4B imaging mode |
| 1.9 | One key intelligent optimization |
| 1.10 | Chinese and English interface, Chinese and English input, optional |
| 1.11 | Monitor: 15 inches, high definition ultrasonic display liquid crystal display |
| 1.12 | Display 0-30 degree angle adjustable |
| 1.13 | Physical clipboard: save the image on the left side of the screen, which can be directly saved or deleted. |
| 1.14 | The system has the function of on-the-spot upgrade |
| 1.15 | Presupposition: for different inspection of the viscera, preset the inspection conditions for the best image, reduce the adjustment of the operation, and the commonly used external adjustment and combination regulation. |
| 1.16 | Support real-time 3D imaging function |
| 1.17 | The probe interface is 2 |
| 2 | probe |
| 2.1 | Convex array probe: fundamental frequency 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H4.0MHz/H5.0MHz, six Duan Bianpin |
| 2.2 | Linear array probe: fundamental frequency: 6.0MHz/7.5MHz/8.5MHz/10.0MHz/H10.0MHz, five stage frequency conversion. |
| 2.3 | Transvaginal probe: fundamental frequency: 4.5MHz/6.0MHz/7.0MHz/9.0MHz/H8.0MHz, five stage frequency conversion. |
| 2.4 | Phased array probe: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/H3.0MHz/H4.0MHz, six stage frequency conversion |
| 2.5 | Micro convex probe: 4.5MHz/6.0MHz/7.0MHz/9.0MHz/H8.0MHz five stage frequency conversion |
| 2.6 | Volume probe: 2.0MHz/3.0MHz/4.5MHz/6.0MHz/H5.0MHz, five stage frequency conversion |
| 2.7 | The above probe has harmonic frequency |
| 2.8 | It can be selected according to customer needs: convex array probe, linear array probe, transrectal probe, micro convex probe, phased array probe, volume probe. |
| 2.9 | Under each probe, there is a selection of specialist and viscera mode and rapid entry detection. |
| 3 | Two-dimensional imaging mode |
| 3.1 | Gain: 0-100, step 1 visible adjustable |
| 3.2 | TGC: 8 segment adjustable |
| 3.3 | Image optimization: visible and adjustable over 7 levels |
| 3.4 | Dynamic range: 20-280dB 20 level visual adjustable (maximum value and adjacent step image proofs). |
| 3.5 | False color: 12, visible and adjustable |
| 3.6 | Smooth treatment: 8, visible and adjustable |
| 3.7 | Edge enhancement: 8, visible and adjustable |
| 3.8 | Sound power: 5% to 100%, step 5%, visible and adjustable |
| 3.9 | Display depth: greater than 317mm, less than 20mm, max depth of probe 371mm |
| 3.10 | Maximum focus number: 6 focal points, which can be moved throughout the whole process. |
| 3.11 | Scan line density 256 visible tunable |
| 3.12 | Gray scale: 0-7 level visible visible and adjustable |
| 3.13 | Filtering, 5 kinds |
| 3.14 | Scanning range, 50%-100% |
| 3.15 | Frame correlation, 0-4 level, visible and adjustable |
| 3.16 | The screen has 14 forms of real time display of voice power, probe frequency, dynamic range, pseudo color, grayscale and so on. |
| 4 | Color imaging mode |
| 4.1 | Color frequency: 8 frequency conversion, visible adjustable |
| 4.2 | Color deflection: equipped with |
| 4.3 | Color frame correlation 12 levels, visible and adjustable |
| 4.4 | Color map: 7, visible and adjustable |
| 4.5 | Color reversal: adjustable |
| 4.6 | B/C split screen synchronous display function: equipped with |
| 4.7 | Color baseline: 7, visible and adjustable |
| 4.8 | Color line density: adjustable |
| 5 | Spectrum Doppler mode |
| 5.1 | Sampling volume angle correction: -80 degree to 80 degree adjustable |
| 5.2 | Sampling volume: 0.5mm-20mm visibility adjustable |
| 5.3 | Frequency: ≥5, visible and adjustable |
| 5.4 | Baseline: 8 adjustable |
| 5.5 | Smooth: 8 files can be adjusted |
| 5.6 | Display layout: 4 visible tunable |
| 5.7 | False color: 7 kinds of adjustable |
| 5.8 | Speed scale: 3-2288cm/s |
| 5.9 | Spectrum envelope function: real time automatic spectrum envelope, manual spectrum envelope, and so on. System automatic analysis and display: PSV, EDV, RI, PI, S/D, ACC, HR and other kinds of data |
| 6 | Measurement and analysis function: |
| 6.1 | General measurement distance, area, angle, time, slope, heart rate, velocity, acceleration, neck hyaline layer, spectrum tracing, resistance index / pulsatility index, etc. |
| 6.2 | Obstetric measurement: weight measurement formula 8 options |
| 6.3 | The color and line type of the measuring line can be adjusted at will (including activating the color and completing the color). |
| 6.4 | The measurement results show that the location and font size can be adjusted according to needs. |
| 6.5 | Professional software package: abdomen, volume, ratio, obstetrics and Gynecology, small organs, carotid, Urology, orthopedics, peripheral blood vessels, heart. |
| 7 | Graphic and text management system |
| 7.1 | Host built in ≥128G solid state hard disk to start fast and stable |
| 7.2 | Movie playback: 1200 frames |
| 7.3 | Internal patient file information management system: can record patient number, name, check number, check date and so on, and can be searched and managed by numbering, checking number, name and so on |
| 7.4 | The type of report is 16 |
| 7.5 | One key fast report graphic and text management |
| 8 | Interface |
| 8.1 | USB interface: 2 |
| 8.2 | VGA interface: 1 |
| 8.3 | COME interface: 1 |
| 8.4 | LAN interface: 1 |
| 8.5 | HDMI interface: 1 |
| 9 | To configure |
| 9.1 | Portable full digital color Doppler ultrasound diagnostic system host 1 sets |
| |
